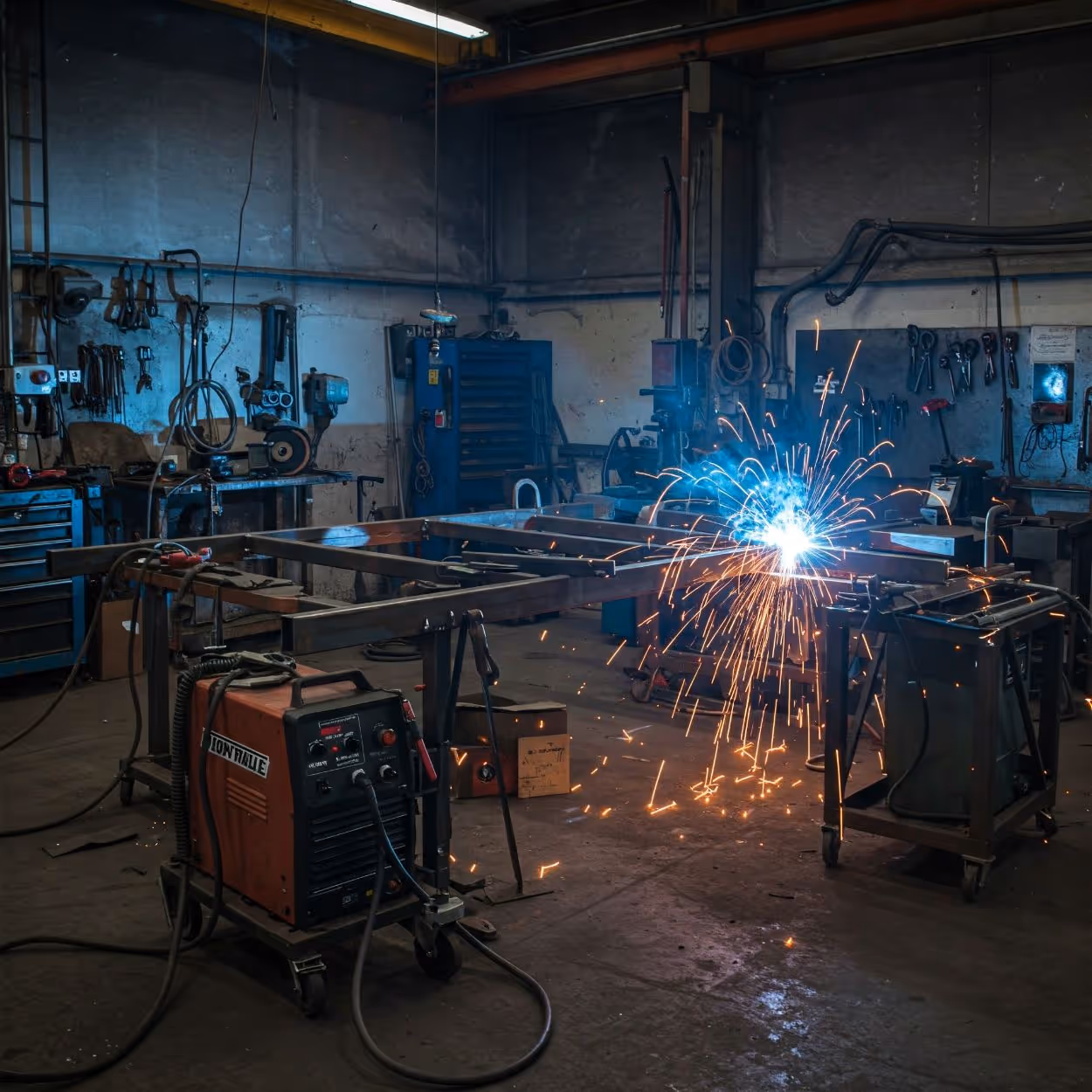

Trailer Welding and Fabrication Guide

When it comes to trailer welding and fabrication, precision and durability are the name of the game. Whether you’re reinforcing structural components or repairing damaged sections, mastering the fundamentals is key to long-lasting results.

Understanding the Foundation of Trailer Welding

Trailer welding is about ensuring the integrity of the structure under immense stress. Heavy-duty trailers face extreme loads, vibrations, and environmental conditions, so weld quality is paramount.

The welding techniques you choose will depend on the trailer’s material and purpose. Commonly, you’ll encounter:

• MIG Welding (Metal Inert Gas): Great for lightweight or medium applications, offering clean, precise welds.
• Stick Welding (Shielded Metal Arc): Ideal for heavy steel applications, even in outdoor environments.
• TIG Welding (Tungsten Inert Gas): Best for precision, often used for aluminum or thin metals.

Choosing the Right Materials for Fabrication

For trailers, selecting the right materials ensures strength without excess weight. Here’s a look at the most common materials and their applications:

• Steel: The most widely used material in heavy-duty applications due to its high tensile strength and weldability.
• Aluminum: Lightweight and resistant to corrosion, making it ideal for reducing trailer weight without compromising durability.
• Stainless Steel: Offers corrosion resistance, commonly used in coastal areas or for food-grade applications.

Trailer Components That Often Require Welding

Knowing which parts of a trailer see frequent repair or modification will help focus your welding efforts. Common areas include:

• Frames and Crossmembers: The backbone of the trailer, these are critical to maintaining structural integrity.
• Hitches and Couplers: Frequent stress points that require reinforced welds to prevent failure during towing.
• Suspension Mounts: Vital for handling loads and minimizing wear on other components.
• Sidewalls and Roof Panels: Often fabricated or repaired to optimize aerodynamics and cargo protection.

Preparing for a Successful Weld

Even the best welding technique can fail if you skip preparation. Here’s what to do before striking the arc:

• Clean the Surface: Dirt, grease, or rust can compromise weld quality. Clean with a wire brush or grinder.
• Fit-Up and Alignment: Ensure components are properly aligned and securely clamped to prevent distortion.
• Preheating (When Necessary): For thicker materials, preheating can prevent cracking by reducing temperature differences during welding.
• Select the Proper Filler Metal: Match the filler metal to the base material for optimal strength and corrosion resistance.

Welding Techniques for Common Repairs

Cracks in Frame Rails

• Grind out the crack to expose clean metal.
• Use a V-groove joint to allow deeper weld penetration.
• MIG or stick welding is recommended, depending on the metal thickness.

Suspension Mount Damage

• Remove any damaged mounts completely.
• Ensure new mounts are fitted flush to avoid misalignment.
• Stick weld for high strength, especially for heavy-duty applications.

Hitches and Couplers

• Reinforce welds using additional gussets where possible.
• Test for proper weight distribution and stress handling after completion.

Safety Tips for Welding and Fabrication

Trailer welding and fabrication can be dangerous without the right precautions. Here’s how to stay safe:

• Wear Protective Gear: Welding helmets, gloves, and fire-resistant clothing are non-negotiable.
• Ventilation is Key: Welding fumes, especially when working with coated metals, can be hazardous. Ensure proper airflow.
• Prevent Fire Hazards: Clear the workspace of flammable materials and have a fire extinguisher nearby.
• Inspect Tools and Equipment: Faulty tools can lead to poor welds or injuries.

Post-Weld Inspections and Quality Assurance

The job isn’t over once the weld is laid down. Proper inspections ensure safety and reliability:

• Visual Inspection: Look for defects like cracks, porosity, or lack of penetration.
• Non-Destructive Testing (NDT): For critical welds, methods like ultrasonic testing or dye penetrant testing are used to detect internal flaws.
• Load Testing: For key structural components, apply a load test to confirm the weld’s strength.

Custom Fabrication Tips for Trailers

Customization is a major part of trailer fabrication, allowing for specialized hauling capabilities:

• Reinforcing Frames for Heavy Loads: Add crossmembers or gussets to handle increased weight.
• Installing Toolboxes and Racks: Ensure proper weight distribution and secure mounts with strong welds.
• Modifying Axle Configurations: When adding or changing axles, ensure precise alignment to prevent uneven tire wear.

Strengthen Your Haul Today

Trailer welding and fabrication is about much more than joining metal—it’s about ensuring that every seam, joint, and modification stands up to the toughest conditions on the road. By mastering the right techniques, choosing quality materials, and following safety protocols, you can create durable, roadworthy trailers that meet any hauling challenge.
